Making a flat panel wooden door (also called a slab door) is different from making a traditional framed door. It uses sheet materials like MDF, plywood, or particle board. The process is faster and more like making furniture. Here are the main machines you need for this work.
1. Panel Saw for Cutting Sheets
The first step is to cut large boards into door-sized pieces. A Vertical Panel Saw is the best choice. It can cut big sheets of MDF or plywood with high accuracy. The saw cuts straight lines and can cut multiple pieces at once. A Beam Saw is another good option for high-volume production. These saws are safe and give clean edges.
2. Edge Banding Machine
After cutting, the edges of the board are exposed and rough. The Edge Banding Machine is used to cover these edges with a thin strip of veneer or PVC material. This machine applies glue, presses the strip onto the edge, and trims the extra material. It makes the door look nice and protects the board from moisture. A good edge bander is essential for making flat panel doors.

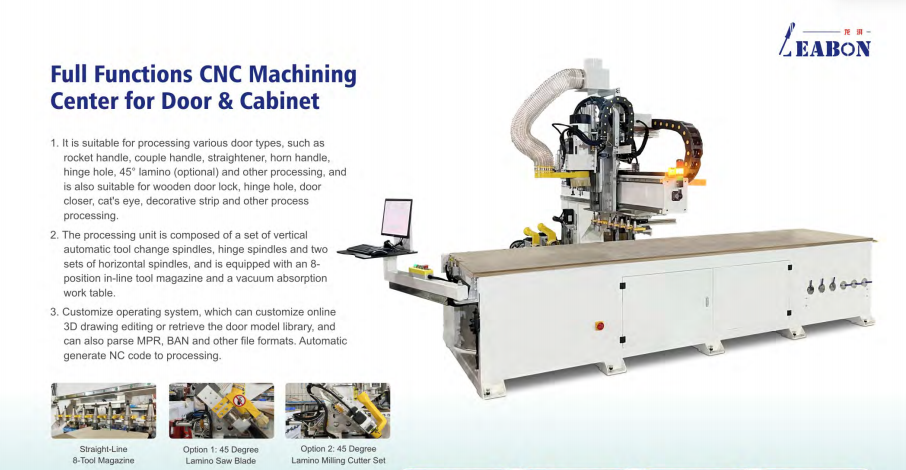

3. CNC Router for Shaping
The CNC Router is the most important machine in modern door making. This computer-controlled machine can cut holes, carve grooves, and create any design on the door surface. For example, it can cut the holes for door locks and hinges. It can also make simple grooves or patterns on the door face. The CNC is very accurate and fast. Once you program the design, the machine repeats it perfectly on every door.
4. Cold Press or Hot Press for Laminating
Most flat panel doors have a decorative surface. To attach a wood veneer or laminate sheet to the door core, you need a Cold Press or a Hot Press. A cold press uses strong pressure to hold the layers together while the glue dries. A hot press uses both heat and pressure to speed up the bonding process. This machine ensures the surface layer sticks firmly and does not bubble or peel.
5. Wide Belt Sander for Smoothing
After the door comes out of the press, the surface may have glue stains or be slightly uneven. The Wide Belt Sander is the best machine for this job. It uses a large sanding belt to sand the whole surface flat and smooth. This machine gives the door a perfect finish, ready for painting or varnishing. Some sanders can do both sides of the door at the same time, which saves a lot of work.
6. Edge Sander or Profile Sander
Even after edge banding, some edges need extra sanding to make them smooth and flush with the door face. A Profile Sander or an Edge Sander is used for this small but important job. It removes any glue residue and makes the edges feel soft to the touch.
7. Boring Machine for Hardware
Finally, the door needs holes for hinges, handles, and locks. A Boring Machine is used to drill these holes. A Multi-spindle Boring Machine can drill several holes at the same time, which is faster and more accurate. This is very useful for mass production because all doors will have holes in the same positions.
Conclusion
Flat panel door production is more efficient than traditional door making. The key machines are the panel saw for cutting, edge bander for edges, CNC for shaping, press for laminating, sander for smoothing, and boring machine for hardware. With these machines, you can produce strong, smooth, and beautiful doors in large numbers.
