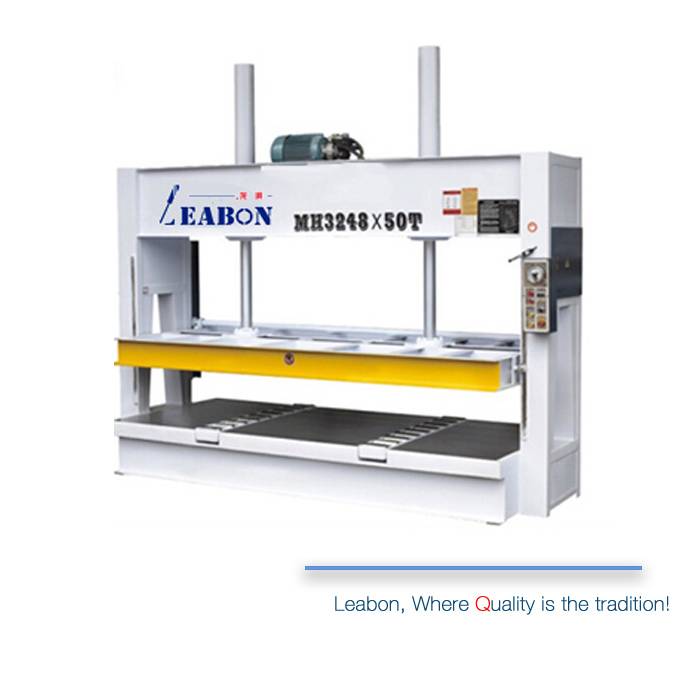

50 Tons China Woodworking Hydraulic Cold Press Machine(MH3248*50T) (With Rollers)

This machine fix with automatic feeding system, can auto loading before pressing and unloading after work.
50 Tons Cold Press Machine is most frequently used industrial cold laminator machine, it is easy operation, stable performance, reliable pressing quality. This model fix with rollers, easy to move the work piece into worktable.
Professional Cold Press Machine Manufacture from China.
The pressure can be customized from 50 Tons to 500 Tons for various usage.
Simple hydraulic circuit design, lower consumption and easy maintenance.
our 50 Tons cold press machine’s steel plate are based on the pressure’s requires for wood or plywood to achieve the commitment pressure, quality assured.
It’s ideal equipment for pressing wood, plywood etc. in woodworking industry with economic expense. Cold press price is much cheaper than hot press machine.

Most electrical components use Schneider, main parts have CE approval, furthermore, the complete machine also approved by CE.
Our machine’s Steel plate are based on the pressure’s requires, to achieve our commitment pressure, thus insured the quality.
The upper and lower steel frames made by the gantry milling finishing, as a result to ensure absolute formation.
Fix with automatic control circuit and pressure cut-off protection, automatic lifting, also automatic oil off.
Fast and efficient pressing, emergency safety braking, trip limited device.
We use Hydraulic pressing system instead of Pneumatic pressing system, hence the lifting is fast and stable, pressure is uniform and efficiency is high.

Specification

Technical Parameters/Model No.	MH3248X50T (with rollers)
Feeding Method	Spring&Rollers
Hydraulic motor power	5.5kw
Platen Size	2500x1250mm
Overall diamensions	2950x1250x3050mm
Max.Pressure	50T
Weight	3100kg
Max.Platen opening	1000mm
