Jumping Cross Cutting Saw Machine Woodworking Cutting Saw Machine for Pier Wooden Squares and Other Truncation

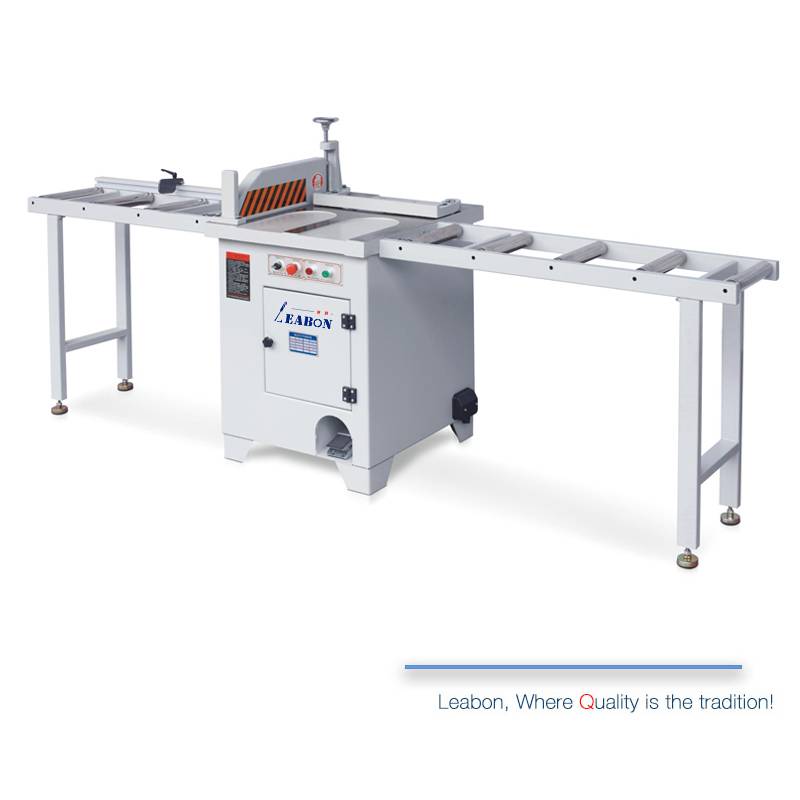

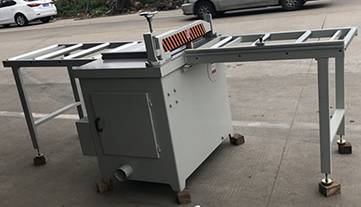

Jumping Cross Cutting Saw Machine

Cut the wood to the desired length. In actual production, using a pneumatic cross-cut saw for thicker and longer wood can improve efficiency and reduce labor intensity.

Enquiry

Description
Specification

Features of Jumping Cross Cutting Saw Machine

1. Easy to maintain, both for industrial use and personal use, easy to disassemble and maintain.

2. The machine does not heat up when used for a long time.

Jumping Cross Cutting saw

Simple design, easy to install and maintain. Saw blade guards for worker safety.

Machine Details

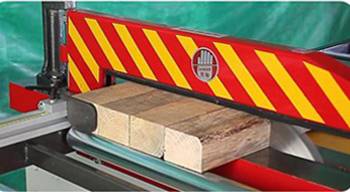

Processing workpiece

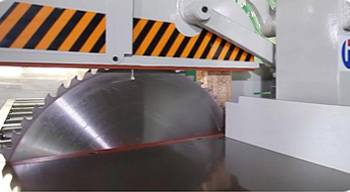

Saw blade

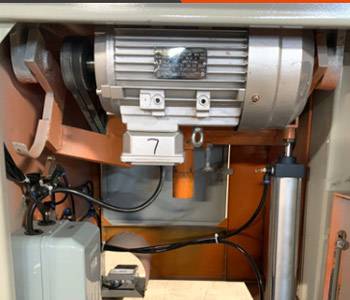

Motor

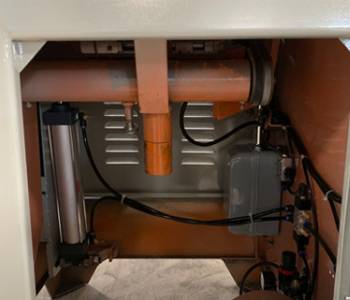

Cylinder

OUR CERTIFICATES

Specification

Model	MJ274	MJ274B
Max. cutting width 1	150mm(Thickness about 110mm)	530mm(Thickness about 70mm)
Max. cutting width 2	30mm(Thickness about 40mm)
Spindle saw blade diameter		400mm
Spindle speed	2840r/min	2500r/min
Outgoing rack size	1000x340mm	1000x640mm
Feeding frame size	1200x340mm	1000x640mm
Motor power	5.5kw	4kw
Dimensions	2900x930x1100mm	2700x1000x1200mm
Weight	300kg	400kg
