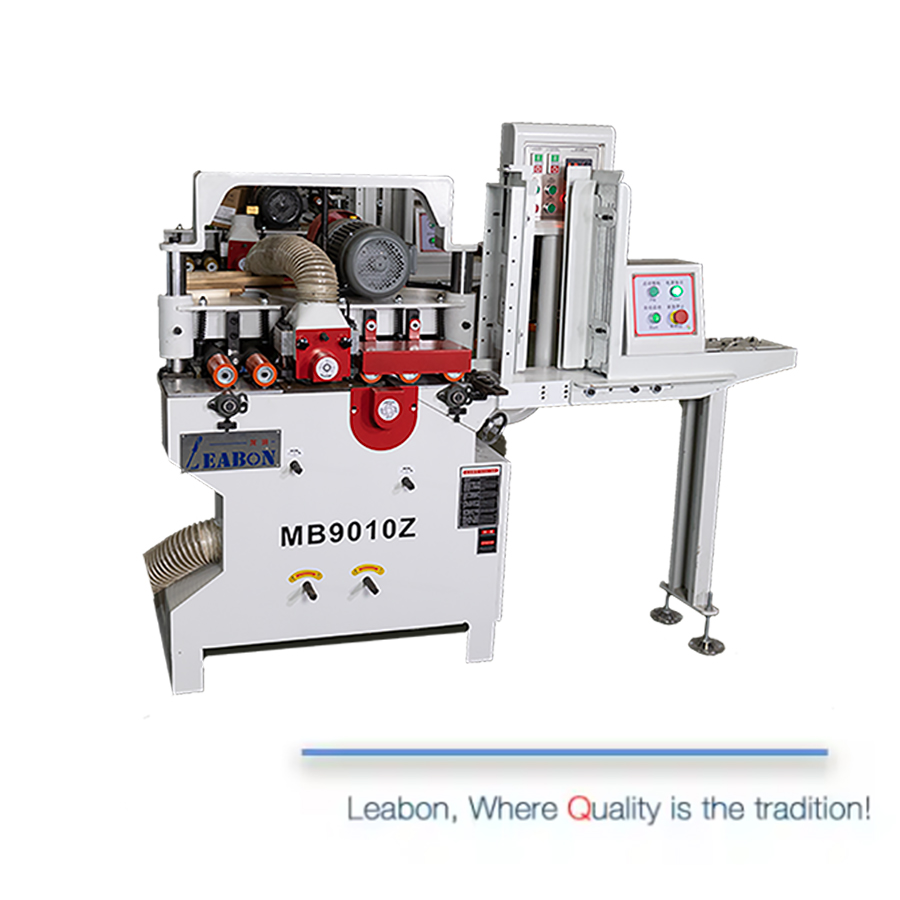

MB9010Z Wood Round Rod Moulder with variable frequency speed control, easy operation and stable running. Ideal for automatic feeding, milling and sanding wooden dowels in furniture processing.

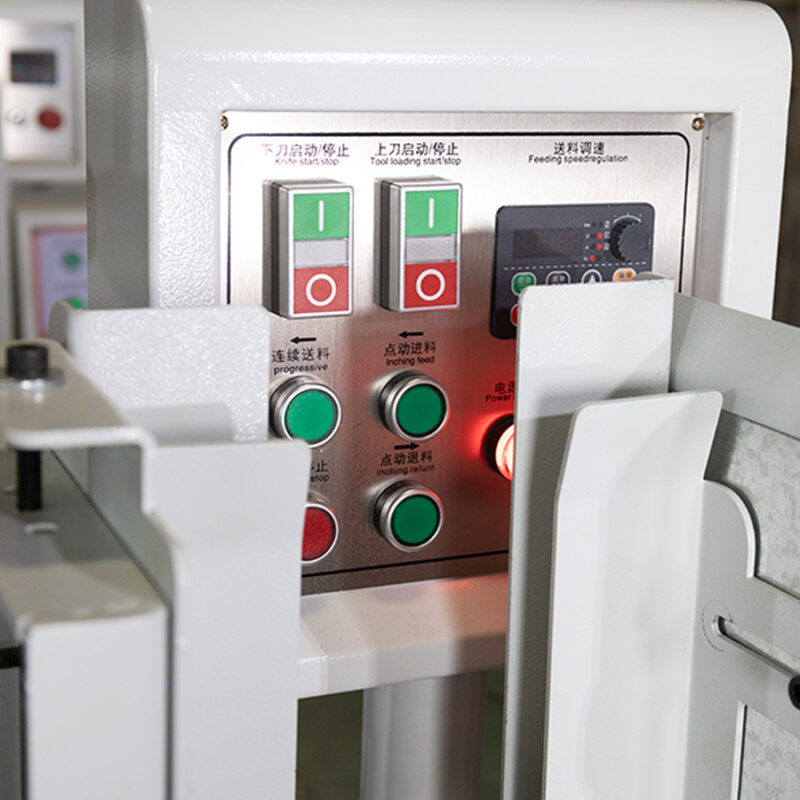

Control Panel
The control panel buttons are clearly categorized, making operations simpler and more streamlined.
Enlarged Work Surface
Highly Stable, Making Work More Convenient

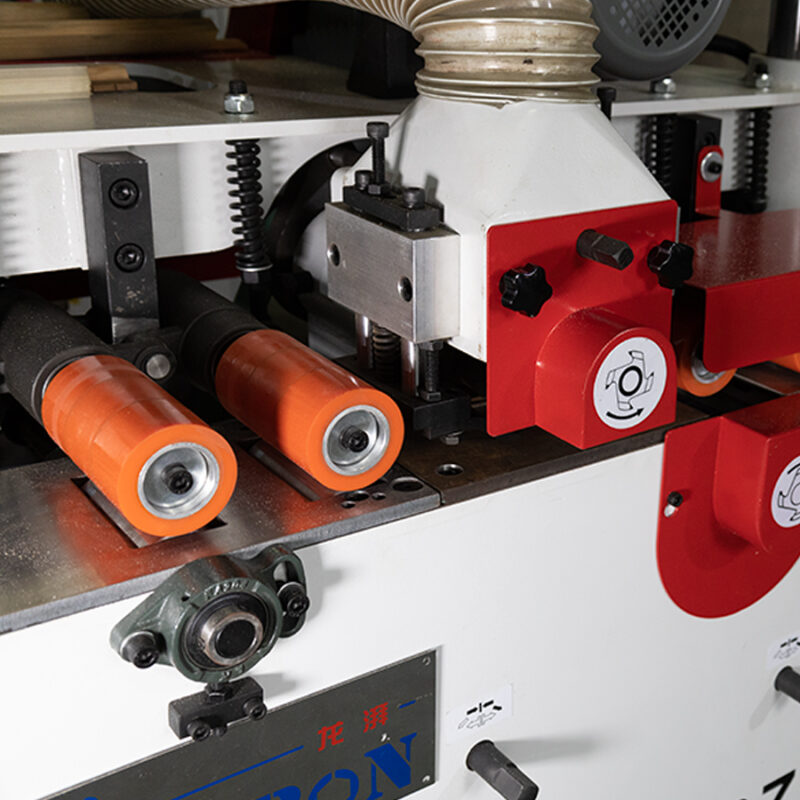

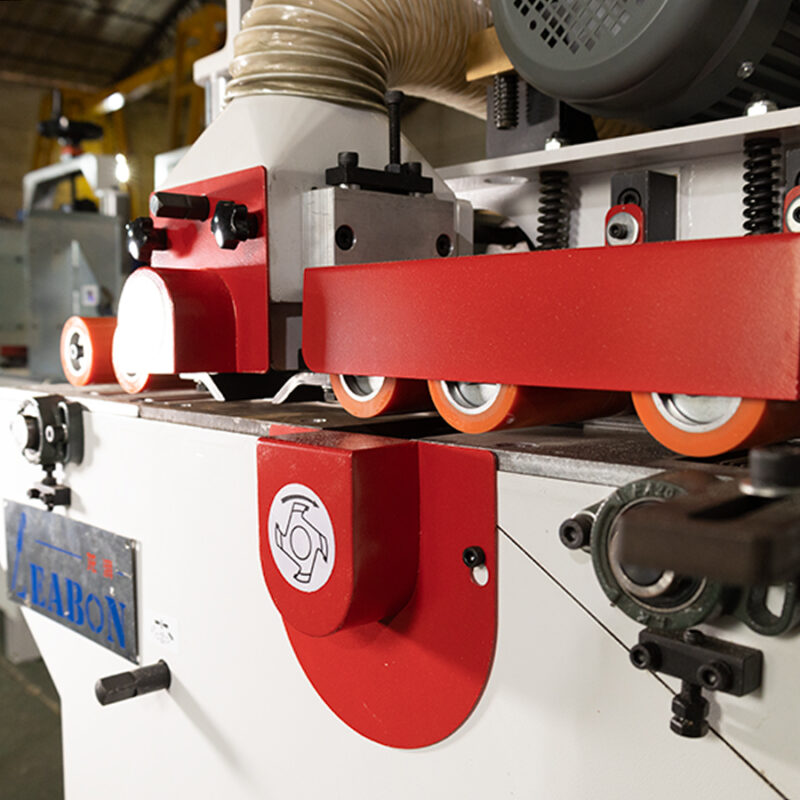

Rubber-Roller Feed
Feeds Material Without Damaging the Wood
| Maximum machining width | 100mm | Working diameter | 4-45mm |
|---|---|---|---|
| Maximum machining length | 6000mm | Minimum machining length | 250mm |
| Minimum machining thickness | 4mm | Maximum machining thickness | 45mm |
| Feeding motor power | 1.5KW | Feeding speed | 5-15m/min |
| First motor power | 5.5kw | Power of lifting motor | 0.37kw |
| Second motor power | 5.5kw | Maximum spindle diameter | Φ30mm |
| Vacuum suction port size | Φ100mm | Weight | 560kg |
| Total power | 12.5kw | Overall size | 1300*950*1500mm |
