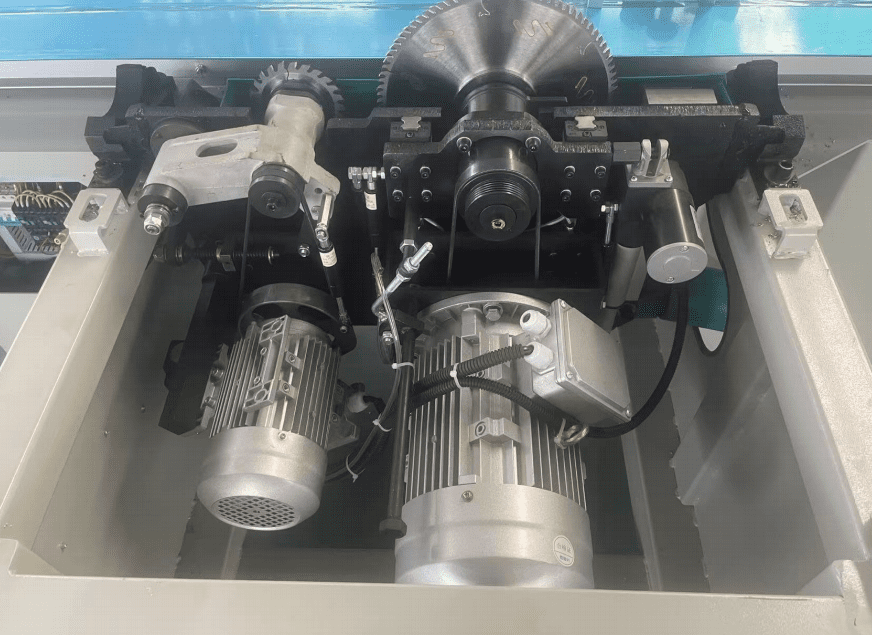

Internal structure
The interior adopts stable MAS structure, and the vertical plate uses 20mm thick steel plate, which is hard and does not deform. Equipped with double straight line 25 guide rail, four groups of sliders, smooth lifting. The main saw blade electric lifting, the size of the national standard pure copper aluminum shell motor, to provide strong power for the machine, accurate and efficient

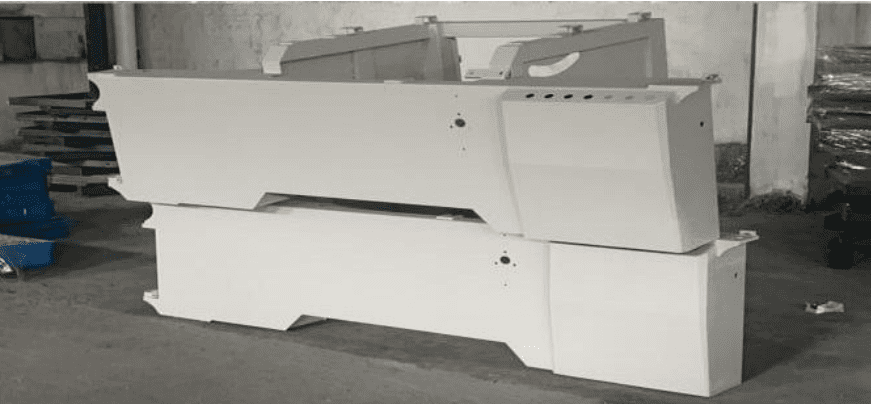

Machine appearance
Using square steel frame 4mm body plate, laser cutting and drilling. The body length is 2000mm, using 100*100mm square tube frame, thickening and lengthening the body to ensure cutting accuracy and extend the service life of the machine.

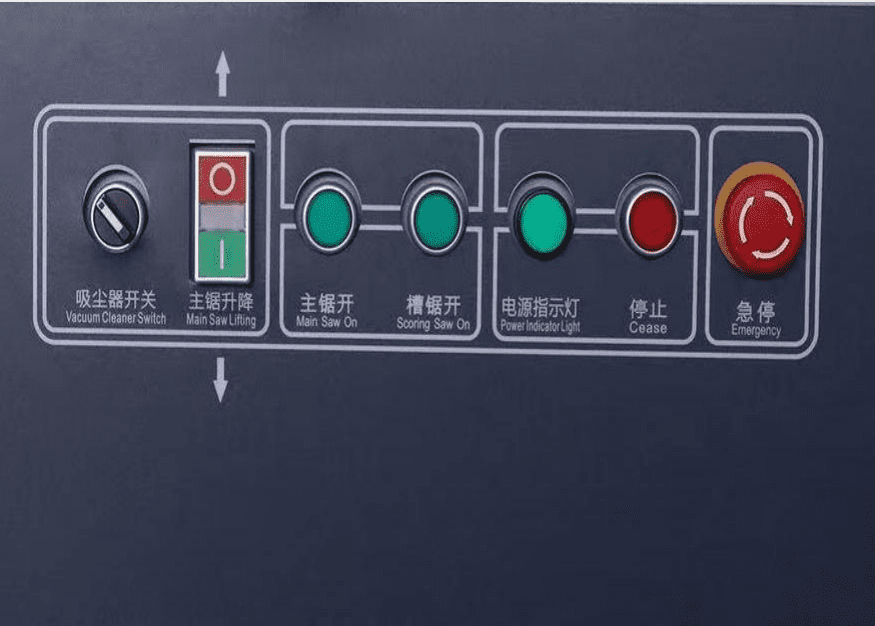

Control panel
The machine features dust-proof switches, including a dedicated control for the dust extraction system, allowing for convenient operation. The main saw blade utilizes an electric lifting mechanism, which saves time compared to traditional manual adjustment methods.

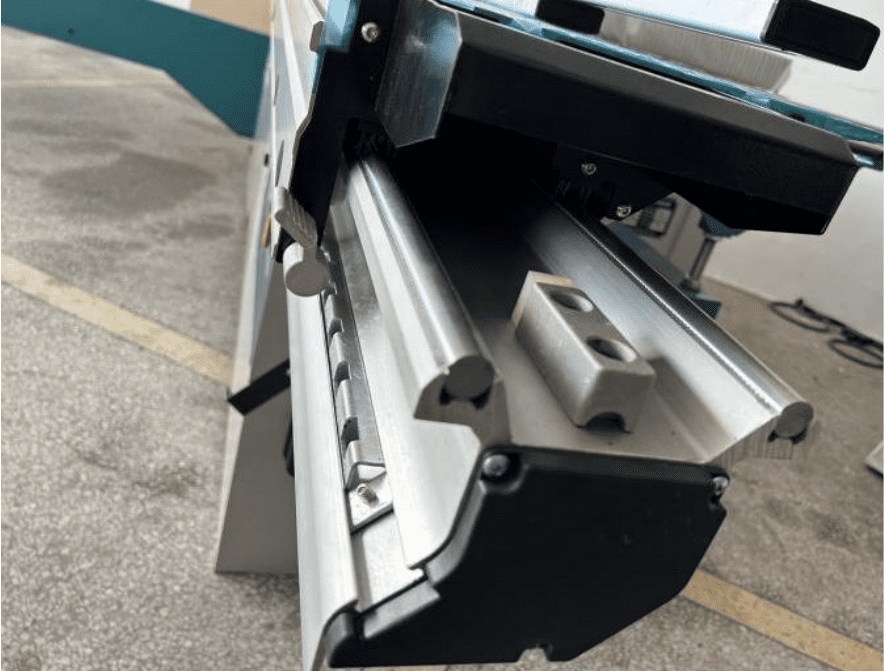

Sliding Table Configuration
The machine features a sliding table equipped with a European-style, dual-layer, twin-rail round rod guide system, ensuring structural stability and high load-bearing capacity. It operates smoothly when cutting heavy panels, thereby guaranteeing precision. An external locking mechanism allows the sliding table to be stopped at any position.

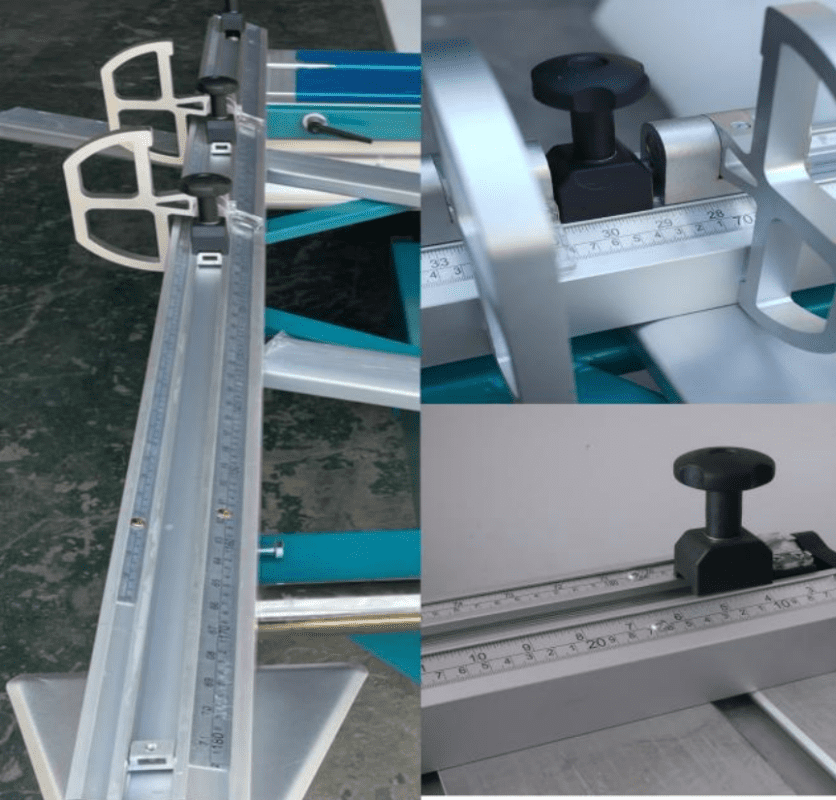

Large European-style aluminum ruler
Features an 1800mm extended European-style aluminum fence equipped with a magnifying lens; this large European-style fence ensures stability and prevents shifting. It is extendable to provide a larger working area, maintains high precision, allows for clear visibility of materials, and reduces physical effort.

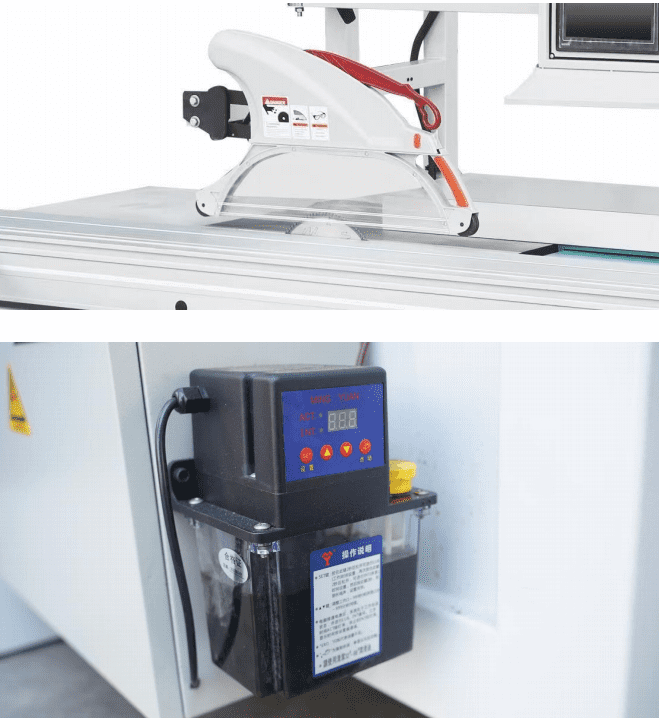

Dust and oil pump
It features a premium, large European-style dust guard that protects the saw blade while effectively collecting dust over a wide area—combining aesthetic appeal with practicality. The table saw is equipped with an integrated oiling system designed to lubricate internal circuits and protect internal components; it utilizes an oil cup for automatic lubrication, eliminating the need for manual effort.

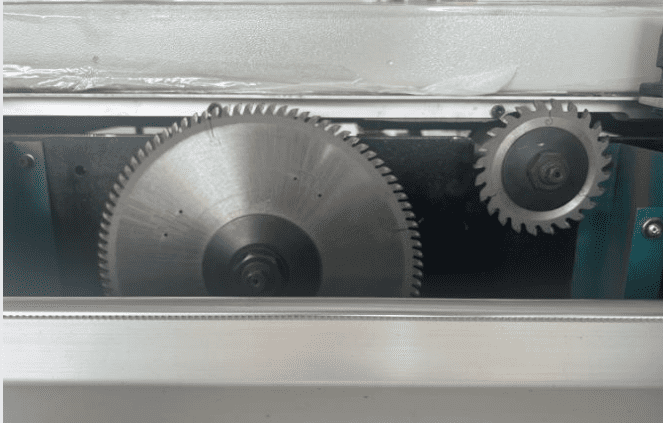

Double saw blade structure
The dual-blade system features a configuration with a large main blade and a small scoring blade; the small scoring blade cuts a preliminary groove, allowing the large blade—following closely behind—to cut the panel with high precision and ease, preventing edge chipping or burrs and ensuring accuracy.

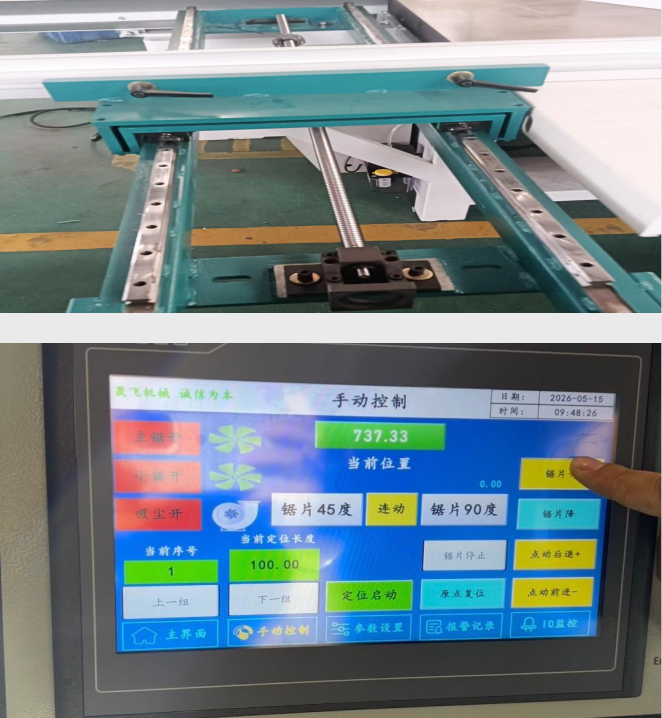

CNC Positioning / Motorized Angle Adjustment / Dimensional Positioning / Angle Display
The CNC positioning system features internal dual linear guide rails for structural stability and offers a positioning accuracy of 0.1mm. It allows for motorized angle adjustment directly via the screen, enabling seamless switching between 45° and 90° (or any angle in between), as well as the selection of any of the 14 programmable positioning dimensions. Angle readings are displayed simultaneously on both the handwheel dial and the digital display, and manual angle adjustment is also supported.
