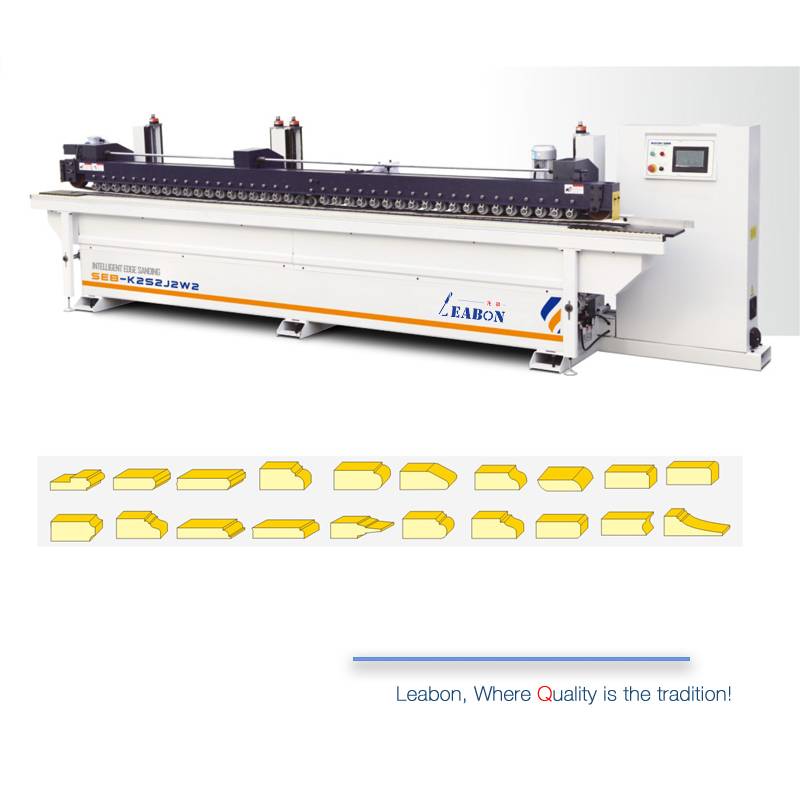

Intelligent Edge Milling and Sanding Machine SEB-K2S2J2W2

It is specially designed for all kinds of furniture, tables, chairs, coffee tables, kitchen cabinets, doors and other blanks, can mill and sand, polish the edge of the work pieces. It is highly targeted, easy to operate, and can be configured with different abrasives according to different process requirements.

Enquiry

Edge Milling and Sanding Machine Features

Edge Milling and Sanding Machine Structure

Edge Profiling
Intelligent Tracking
Data Storage
Multi Functional

According to the requirements of different processing techniques, various milling heads and sanding heads can be arranged in various configurations. Each milling head and sanding head adopts frequency conversion speed regulation, which is suitable for different process requirements.

This machine adopts touch screen man-machine interface, PLC program control, independent variable frequency speed regulation for each working group, and the operation is simple and convenient.

The sand frame can be adjusted from -45 degrees to +90 degrees, suitable for edge straight contouring sanding at a certain angle;

Electric three-dimensional adjustment of each milling head and all kinds of sanding head angle, the machine is easy and convenient.

The pressing device adopts aluminum alloy pressure beam and never deforms, spring load and 68mm seamless wide belt, which is reliable and does not hurt the workpiece.

The track adopts chain conveying, frequency conversion speed regulation and cylindrical guide rail guiding, and the feeding ability is strong, stable and reliable。

Combination of Various Sanding and Polishing Heads

Specification

Model No.	SEB-Z3G3S2W7	SEB-K2S2J2W2	SEG-K2S2J2W4	SEG-S2W5
Workpiece width	100–2400mm	80–2400mm	80-2400mm	80–2400mm
Min length of workpiece	200mm	150mm	150mm	150mm
Working thickness	10-60mm	5-80mm	5-80mm	5-80mm
Feed speed	1-22.4 m/min	3-30m/min	3-30m/min	3-30m/min
Feed motor	380V 50HZ 4KW 1430r/min	1pcs, 380V. 50Hz. 2.2Kw, 1430r/min	1pc, 380V, 50Hz. 3.7Kw, 1430r/min	1 pc, 380V. 50Hz, 2.2Kw, 1430r/min
Copy milling	–	2pcs 5.5Kw/pc. 200Hz. 12000r/min	2pcs 5.5Kw/pc. 200Hz. 12000r/min	–
Sand frame swing motor	2pcs 380V 50HZ 0.025KW 1420r/min	2(pcs), 380V. 50Hz. 0.025Kw. 1400r/min	2(pcs), 380V. 50Hz. 0.025Kw. 1400r/min	2 (pcs), 380V. 50Hz. 0.025Kw. 1400r/min
Sand frame motor	2pcs 380V 50HZ 1.5KW 1420r/min	2 (pcs), 380V. 50Hz, 1.5Kw. 1410r/min	2(pcs), 380V. 50Hz, 1.5Kw, 1410r/min	2 (pcs), 380V. 50Hz, 1.5Kw. 1410r/min
Size of sanding belt ( peri. X W)	Perimeter:2160mm Max. Width: 80mm	Perimeter:2160mm, Max. Width: 80mm	Perimeter:2160mm Max. Width: 80mm	Perimeter:2160mm Max. Width: 80mm
Sand frame belt speed	8.15-13.58m/s(30Hz-50Hz)	8.15-13.58m/s(30Hz-50Hz)	8.15-13.58m/s(30Hz–50Hz)	8.15-13.58m/s(30Hz-50Hz)
Sand frame can be tilted	-45°- +90°	-45° – +90°	-45° – +90°	-45° -+90°
Trimming motor	–	2pcs 0.75Kw/pc, 200Hz	2pcs, 0.75Kw/pc. 200Hz	–
working pressure	0.6-0.8Mps	0.6-0.8Mps	0.6-0.8Mps	0.6-0.8Mps
Sand head motor	7 sets 380V 50HZ 1.5KW 1420r/min	2pcs, 380V. 50Hz, 1.5Kw, 1410r/min	4 (pcs), 380V. 50Hz, 1.5Kw, 1410r/min	5(pcs), 380V. 50Hz, 1.5Kw. 1410r/min
Size of sanding belt (peri. x W)	Perimeter：960mm Max. Width：100mm	Perimeter: 960mm, Max. Width: 100mm	Perimeter: 960mm, Max. Width: 100mm	Perimeter: 960mm, Max. Width: 100mm
Sand head tilt angle	0°- +90°	0°-+90°	0°- +90°	0°- +90°
Vacuum nozzle	9KWX3pcs	–	–	–
Fan	0.37KW X3pcs	–	–	–
UV curing light	3KWX2pcsX3	–	–	–
Pressure beam lifting motor	1pc 380V 50HZ 0.37KW 1420r/min	1pc 380V 50HZ 0.37KW 1420r/min	1pc 380V 50HZ 0.37KW 1420r/min	1pc 380V 50HZ 0.37KW 1420r/min
Total power	59.66KW	21.525 KW	27.86 KW	16.8 KW
Operating Voltage	380V 50Hz	380V 50Hz	380V 50HZ	380V 50Hz
Dimension	11500X1300X1900mm	5600mmX 1300mmX 1500mm	7500mmX 1300mmX 1500mm	6200mmX 1300mmX 1500mm
Net Weight	4500Kg	2600kg	3100kg	2600kg
