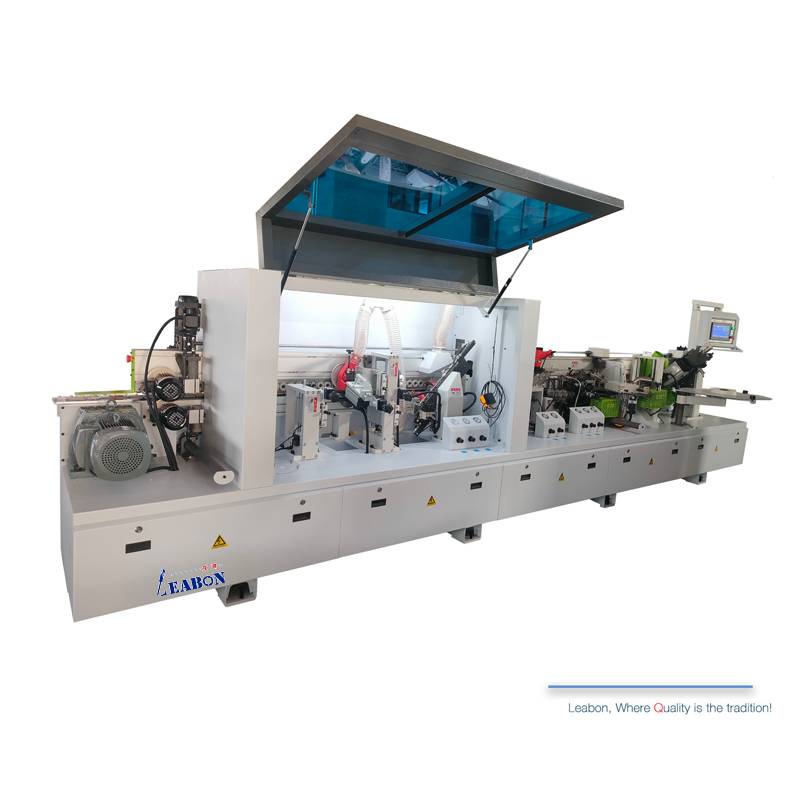

Plywood Pvc Wood Edgebander Machine 45 Degree Bevel Straight Edge Banding Machine F45

New

EDGE BANDING MACHINE F45

Function: 45° Cutting-Heating light-Side banding material grooved-45°&90° Gluing (Double Glue Tanks)-45°&90°pressing-End Cutting-Fine Trimming-Scrapping-Clean spraying-Buffing

Categories: Edge Banding Machine, Panel Machine Tags: 45 Degree Bevel Straight Edge Banding Machine, bevel edge banding machine

Description
Parameters

Product Features

Designed for 45-degree beveled edge banding
Uses internationally renowned brand electrical appliances, including Delta PLCs, Siemens appliances, etc.

Details Images

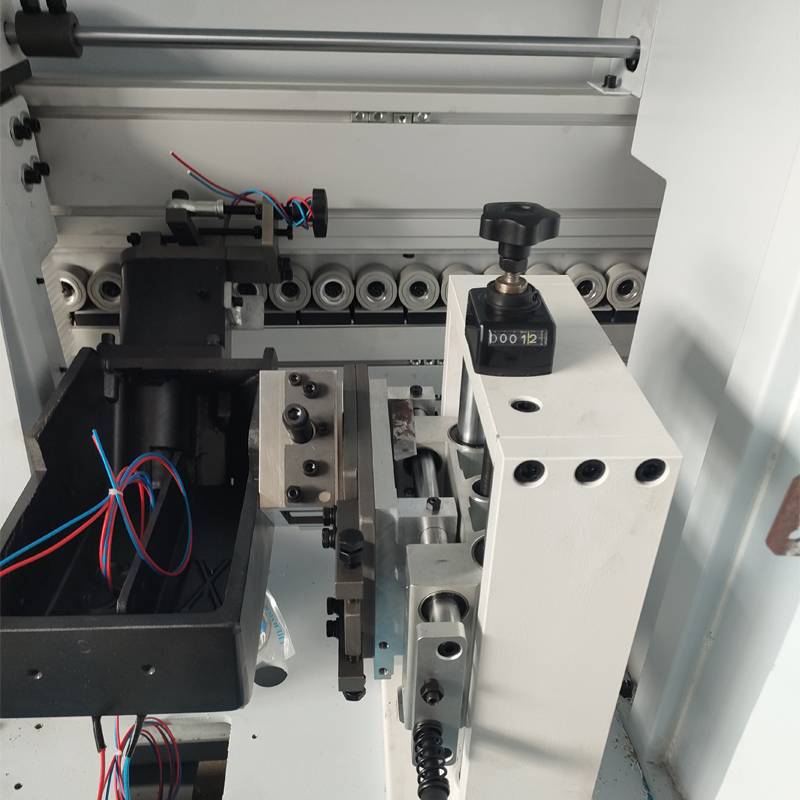

Bevel-edge-glue

Bevel edge glue

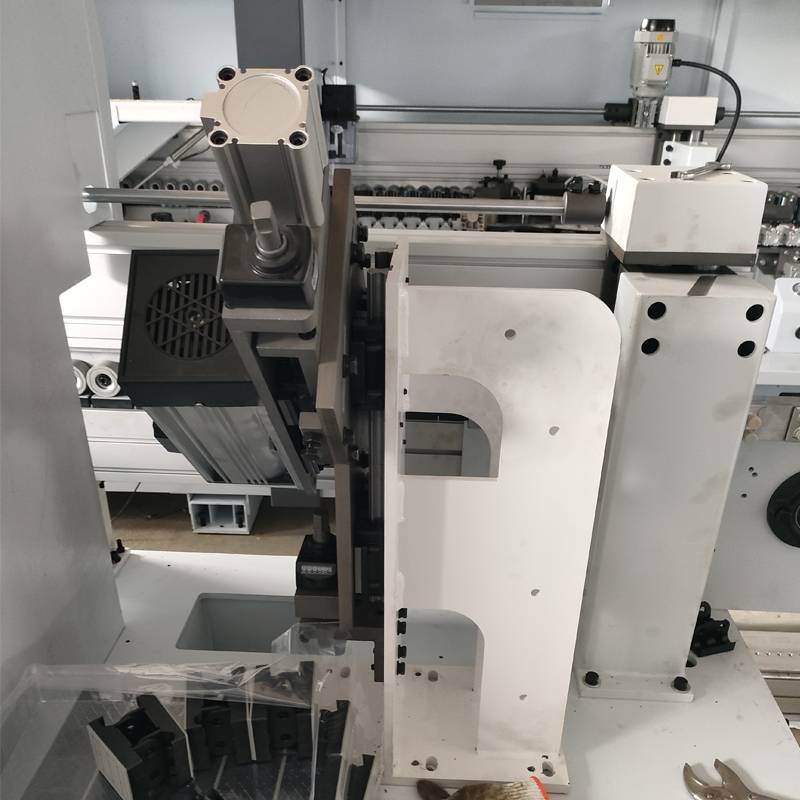

45 degree cutting

45 degree cutting

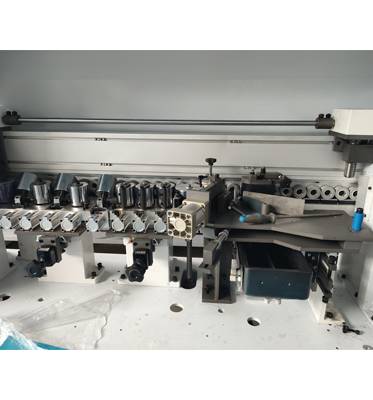

Double group pressing

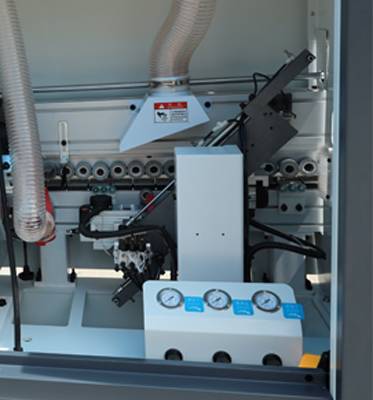

end cutting

End cutting

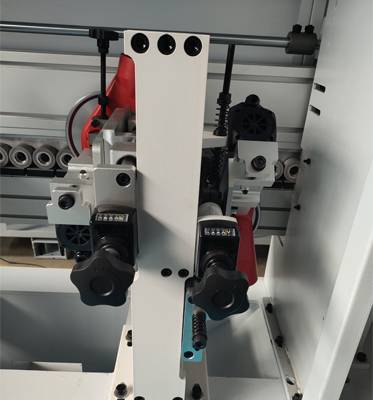

Fine trimming

Fine trimming

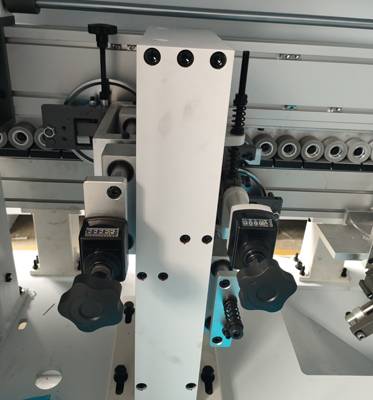

Scrapping

Scrapping

OUR CERTIFICATES

Leabon-certificates

Model	F45
Workpiece width	>80mm
Workpiece length	≥200mm
Workpiece thickness	15-40mm
Edge thickness	Pvc 0.3-1.2mm
Feeding speed	0-23m/min
Air pressure	0.7Mpa
Bevel angle	45°(not adjustable,Customizable angle)
Total power	10.5kw
Weight	1800kg
Dimensions	55007601700
