Pre-milling device：
◆ 2 pcs 2.2kw motors.
Pre-milling cutter height 35mm， Diameter 125, hole diameter 30.

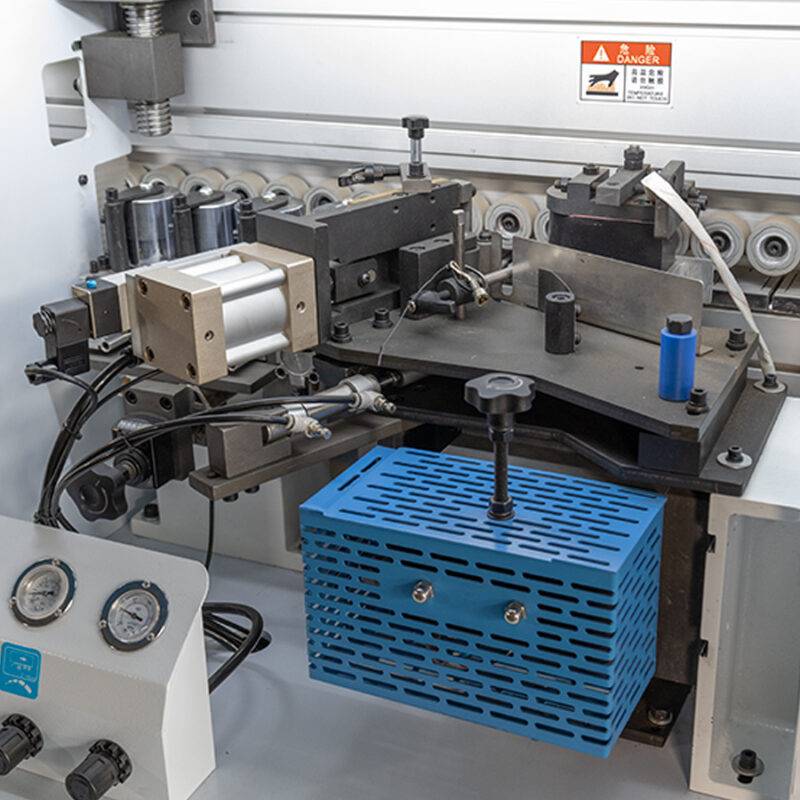

Gluing device:
◆The gluing belt feeding device adopts knurled pin wheel structure, which makes the belt feeding smoother.
◆The distance between the guide plate and the gluing device is controlled at about 0.1mm to ensure the gluing quality.

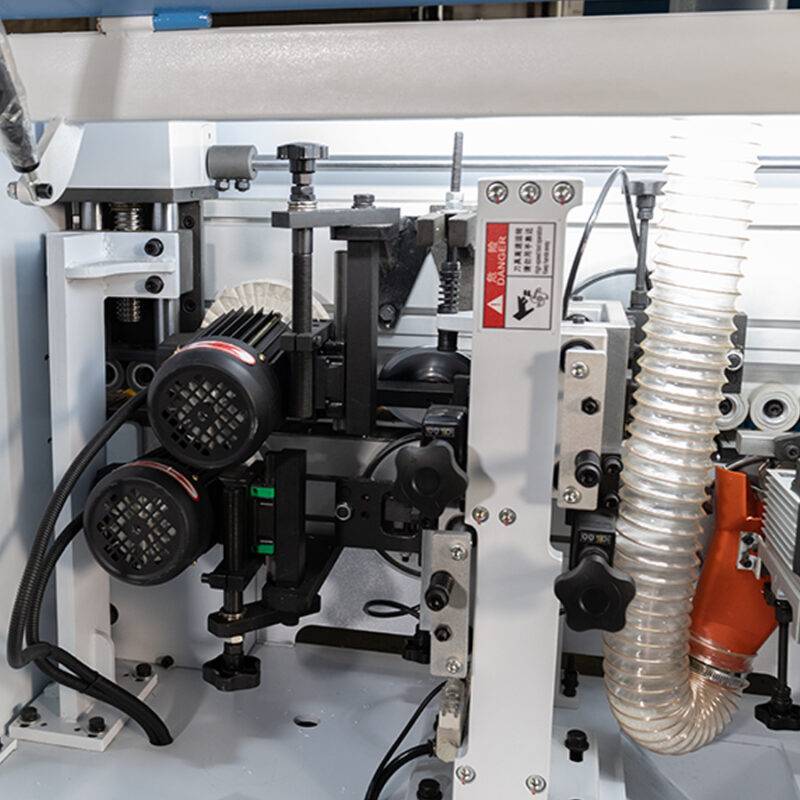

End cutting :
◆45 degree precision linear guideway structure.
◆Two pcs 0.37kw motors, and speed: 12000rpm.
◆Using inverter control

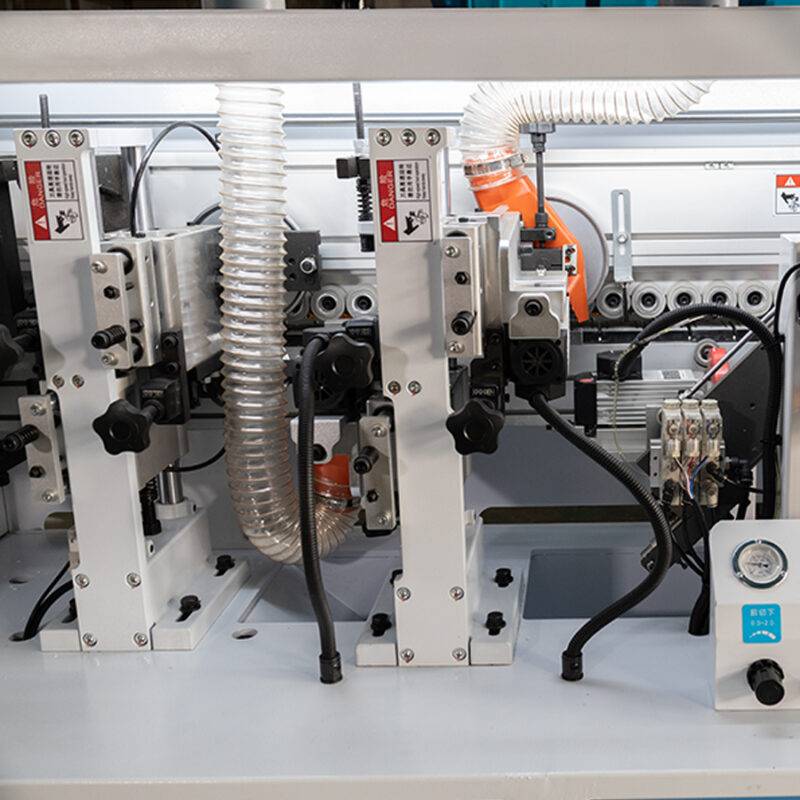

Fine trimming:
◆Two pcs motors, each one is 0.75kw high-speed motor.
◆Two pcs fine milling cutters, specification: ( radius R1.5).
◆Equipped with digital hand wheel to adjust trimming thickness
◆Equipped with independent dust hood.
Scraping:
◆Scraper blade radius are R1.5.
◆Equipped with digital hand wheel to adjust the thickness of scraping edge.
◆Equipped with electronic pneumatic control blower
Cleaning device:
◆Spray cleaning agent before buffing to remove the overflowing glue on the surface of the workpiece, reduce the problem of glue lines and plate stains, and improve the quality of edge sealing.
