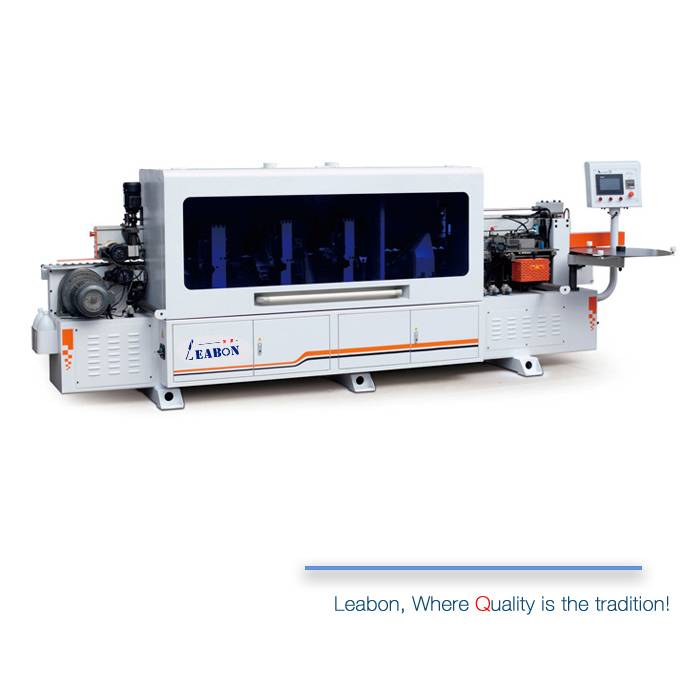

Narrow Plate Automatic Edge Bander Machine T-600Z

Narrow Plate Automatic Edge Bander Machine T-600Z

T-600Z Narrow Panel Automatic PVC Edge Bander Machine is specially design to processing narrow MDF/Plywood panels(Can process min. 30mm width compare to common edge bander 60mm panel width. ) banding work, it’s good for wood, MDF, plywood etc. woodworking edge band work. The banding material can be PVC, Acrylic and ABS. Wood belt is also optional!

T600Z Automatic Edge Bander Machine Functions: Gluing, End Cutting, Fine Trimming, Scraping, and Buffing.

If your production need, you can also choose our manual edge banding machine.

Enquiry

Description
Video

T600Z Narrow Plate Automatic Edge Bander Machine Main Features

1. Taiwan Delta frequency controller, insured the duration and precision of our narrow panel automatic edge bander machine.
2. PLC use Taiwan Delta brand, air cylinder use Parker from America, Airtac liner track, Honeywell limitation switch, all key parts we choose market tested best brands to try to guarantee our machine performance and let our customers can enjoy to use our machines.
3. Independent lifting up and down system, simple and convenient.
4. Precise encoder control, high speed.
5. Special polishing structure, motor angle can be universal adjusted, make the PVC/Acrylic/ABS band polishing and buffing to the best.
6. Glue spray clean system is optional, it’s good to remove the glue and dirty on MDF/Wood during edge banding process.
7. This automatic edge bander machine was special designed for narrow MDF/plywood panel edge work.

Narrow-Plate-Auto-Edge-Bander-Machine-T-600Z

T600Z Narrow Plate Automatic Edge Bander Machine

Leabon Automatic Edge Bander Machine Factory

Edge Bander Machine on the Show

Pneumatic Belt Change System is Optional

functions introduction

Equipped with double diamond blades, remove the possible waving texture on edge to achieve better edge banding affection.

End trim running through precise liner track, automatically tracked with mould and fast cut with high frequency high speed motor, guaranteed the plain and complete of cutting side.

Click edit button to change this text.
PRE-MILLING AND END TRIM

The buffing device adopts cotton material polishing wheel to sand the finished edge band more smoothly.

Gluing facilities use special structure to evenly spread the glue on both banding panel and band, ensure a more solid adhesion force.
Buffing and Gluing

Fine and rough trim facilities are used to remove the extra material on band, it adopts mould automatically track and high frequency high speed motor, ensure the plain and smooth of work piece top and bottom parts.

Scraping units used to remove the texture which might happened during trim processing, guarantee the band to be smooth and plain.
Fine Trim / Rough Trim and Scrapping
