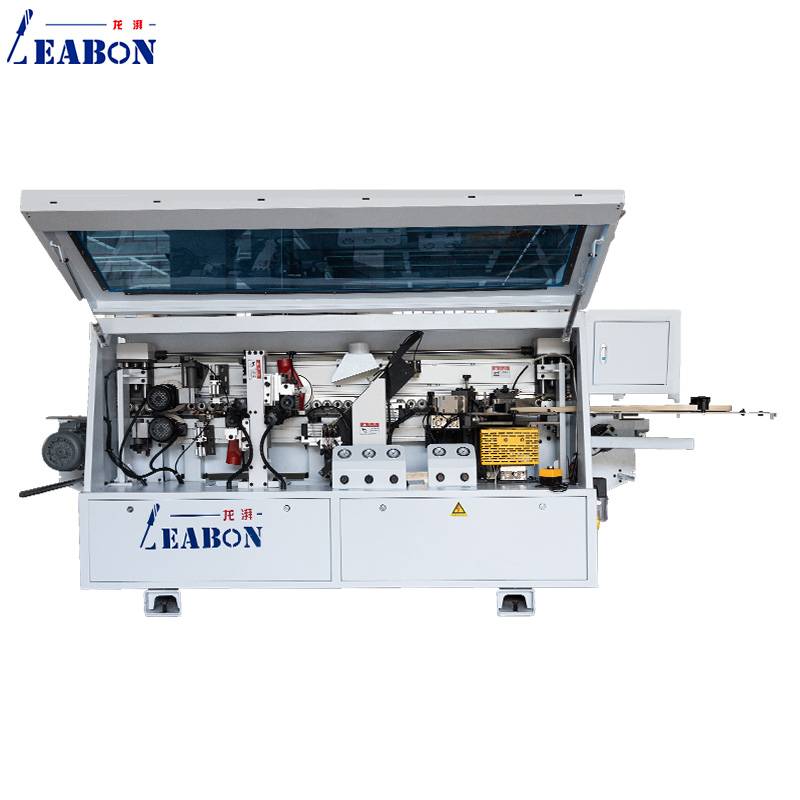

Function: Gluing – 2Wheel Pressing – End Cutting – Fine Trimming – Flat Scraping – Cleaning – Buffing

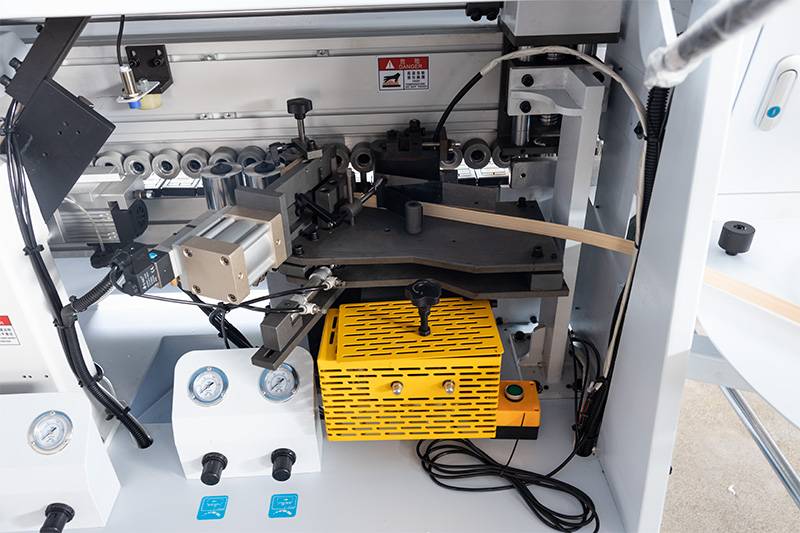

Gluing Device:
◆The gluing and feeding device utilizes a knurled pinwheel structure for smoother feeding.
◆The distance between the guide plate and the gluing device is controlled at approximately 0.1mm to ensure high-quality gluing.

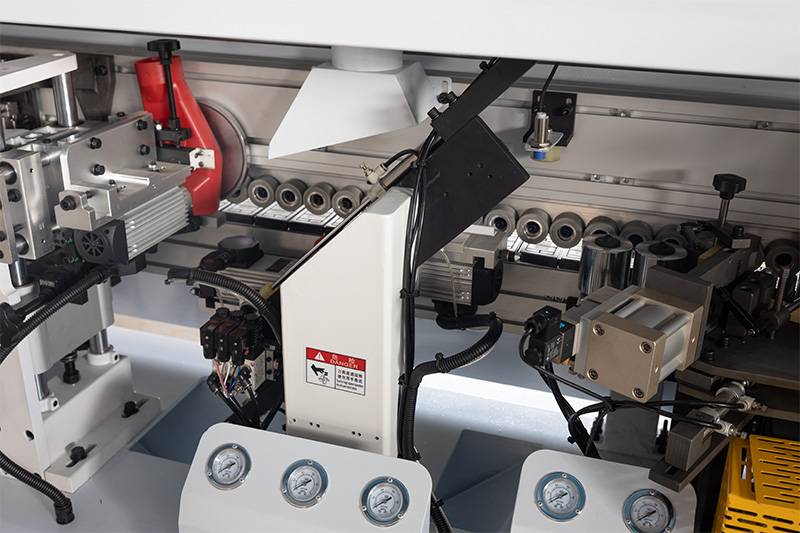

End Cutting Device:
◆45-degree precision linear guide structure.
◆Two 0.37kW motors, 12,000 rpm.
◆Inverter control

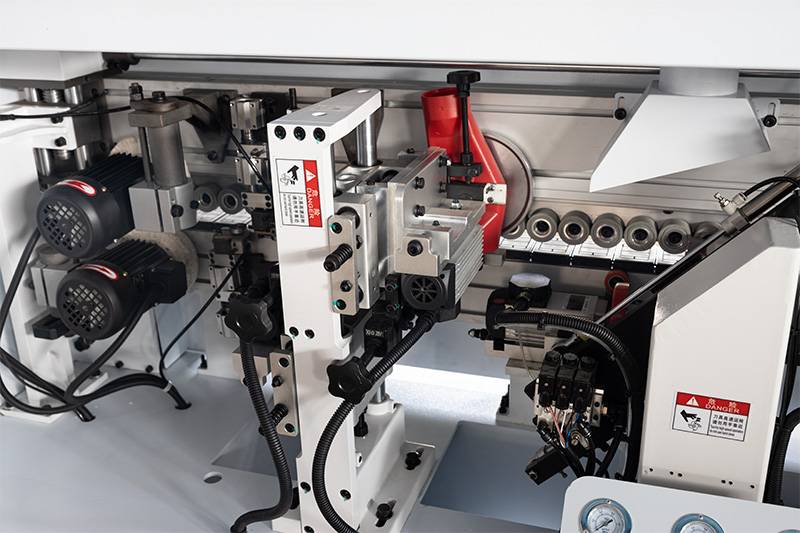

Fine Trimming Device:
◆Two high-speed motors, each with a power of 0.75 Kw.
◆Two fine trimming cutters, specification: (arc radius R1.5).
◆Equipped with a digital handwheel to adjust trimming thickness.
◆Equipped with a separate dust hood.

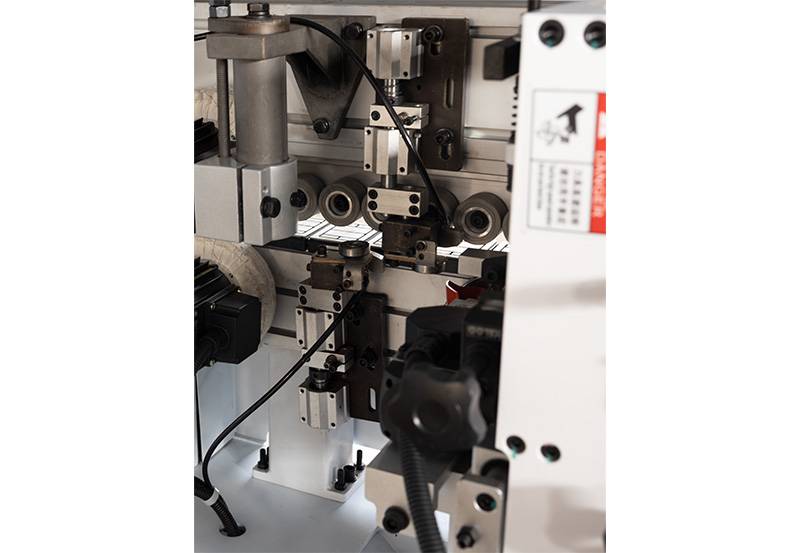

Scraping Device:
◆ Scraper blade radius R1.5.
◆ Equipped with a digital handwheel to adjust the scraping thickness.
◆ Equipped with electronically controlled air blower

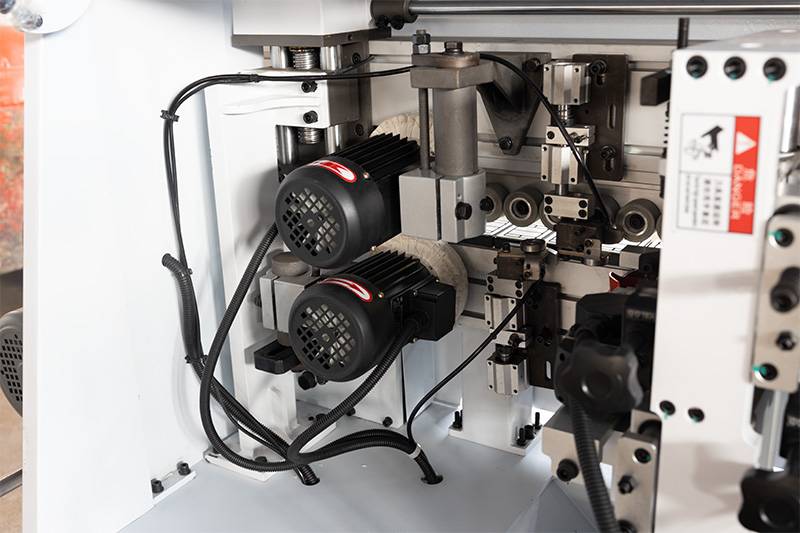

Cleaning Device:
◆Spray a cleaning agent before bufffing to remove glue spilled from the workpiece surface, reducing glue lines and board stains, and improving edge banding quality.

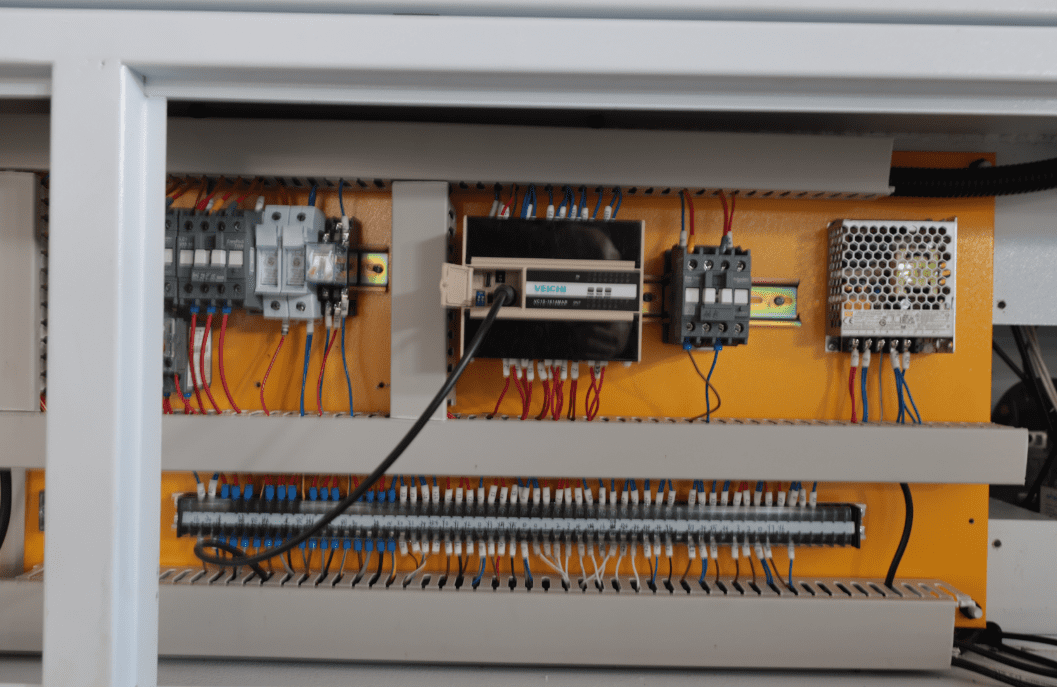

Electrical Equipment:
◆ Input voltage 3-380V, 50Hz. Adjustable to your needs.
◆ Independent inverter control with motor braking function.
◆ Phase sequence protection device.
◆ All equipment and electrical appliances comply with relevant national standards.

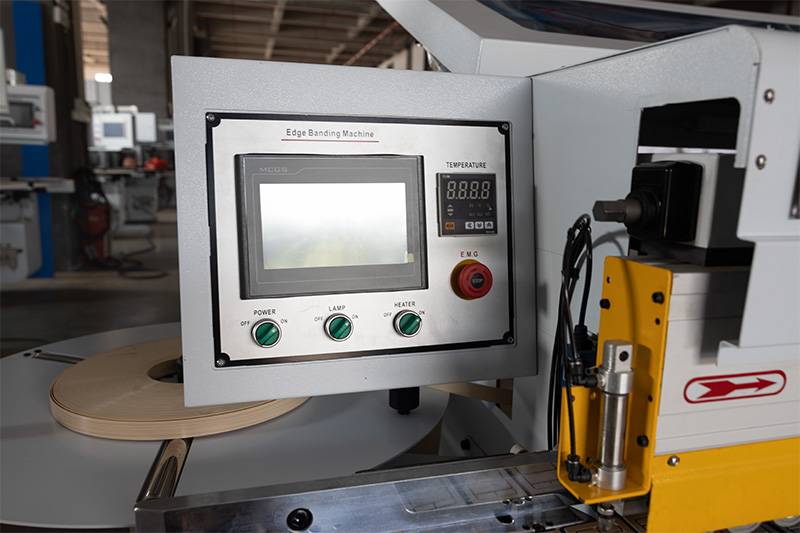

Control Device:
◆ 7-inch Delta touch screen.
◆ Taiwan Delta temperature control module.
◆ Korean Autonics encoder.
