Innovative Technology Leads To Efficient Log Sawing

Log sawing is a critical process in the wood processing industry. However, traditional log sawing methods present numerous challenges, which not only impact production efficiency but also increase costs and safety risks.

With the continuous advancement of technology, modern processing requirements are shifting towards automation, intelligence, high efficiency, and low labor costs. Against this backdrop, the CNC frame saw linkage has emerged. With its innovative technology and efficient operation, it offers a new solution for log sawing.

01 Traditional Log Sawing Faces Many Problems

Traditional log sawing methods face numerous challenges. First, inefficiency is a prominent issue. Due to its reliance on manual operation, sawing speeds are limited, making it difficult to meet the demands of large-scale production. Second, costs are high. Manual operation not only increases labor costs, but also leads to significant material waste due to low precision, further increasing production costs. Furthermore, safety hazards are a significant concern. Manually operated sawing equipment is prone to accidents, posing a threat to workers’ safety.

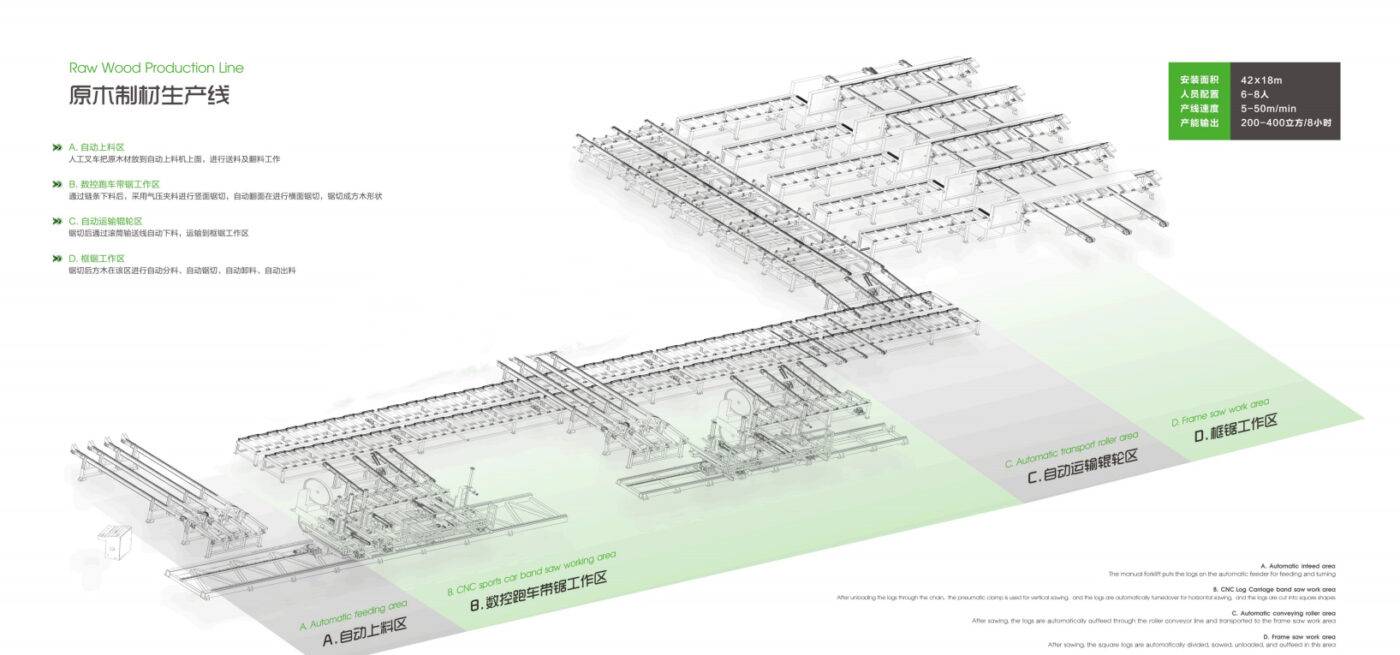

02 Highly Efficient CNC Log Carriage And Cutting Machine And Frame Saw Production Line

Facing the numerous challenges of traditional log sawing methods, the CNC Log Carriage and Cutting Machine and Frame Saw Production Line, with its innovative technology and efficient operation, has brought new hope to the wood processing industry. The CNC Log Carriage and Cutting Machine and Frame Saw Production Line is a highly automated log sawing machine that integrates multiple process steps, minimizing manual intervention and achieving efficient production.

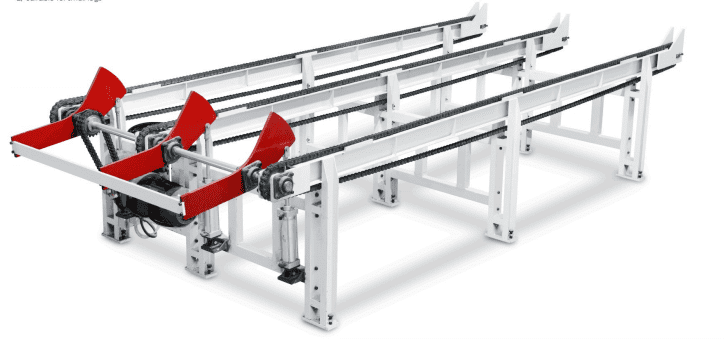

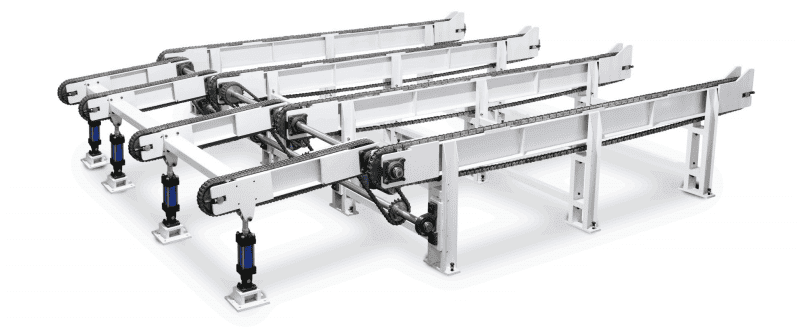

(1) Automatic Loading Area

The automatic loading area of the CNC Log Carriage and Cutting Machine frame saw production line is the starting point of the entire production line. Here, only one worker needs to use a forklift to place the logs on the automatic loading machine to easily complete the loading and turning processes. The loading machine body is made of thickened material, firmly welded, and has a strong load-bearing capacity. It can stack a large amount of wood at a time, greatly improving production efficiency. This automatic loading method not only reduces manual operation, but also improves the speed and safety of loading.

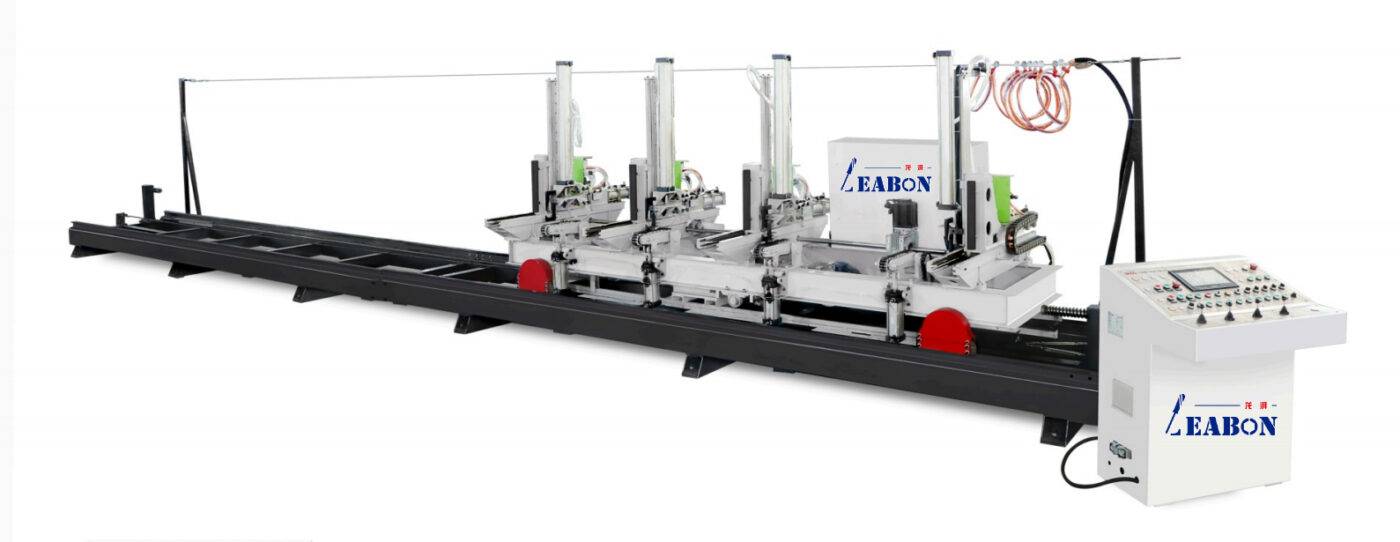

(2) CNC Log Carriage And Cutting Machine Work Area

The CNC Log Carriage and Cutting Machine workspace is the core part of the CNC carriage frame saw line. Here, the CNC Log Carriage and Cutting Machine and the hydraulic band saw work together to achieve high-precision and high-efficiency sawing. The CNC Log Carriage and Cutting Machine uses a precision ball screw combined with a servo motor control, which can quickly and accurately achieve the required feed size.

The track is straight, stable, and fully enclosed, ensuring high-precision linear operation during the reciprocating feeding process. It is also dustproof and waterproof, extending its service life. The hydraulic band saw uses a hydraulic system with automatic backing pressure to ensure that the saw blade tension remains unchanged and does not run. The saw clamp is controlled by an oil cylinder, which is convenient and flexible to adjust. This high-precision sawing method not only improves processing efficiency but also ensures sawing quality.

(3) Automatic Transport Roller Work Area

The sawn timber does not need to be manually picked up and transported, but directly enters the automatic transport roller area. The unloading roller device, chain conveyor device, and roller conveyor device are arranged in sequence to transport the timber, saving both labor and wages. The transport speed is uniform, there is no risk of material piling up, and production efficiency is greatly improved. This automatic transport method not only reduces manual intervention, but also improves the speed and stability of the transport.

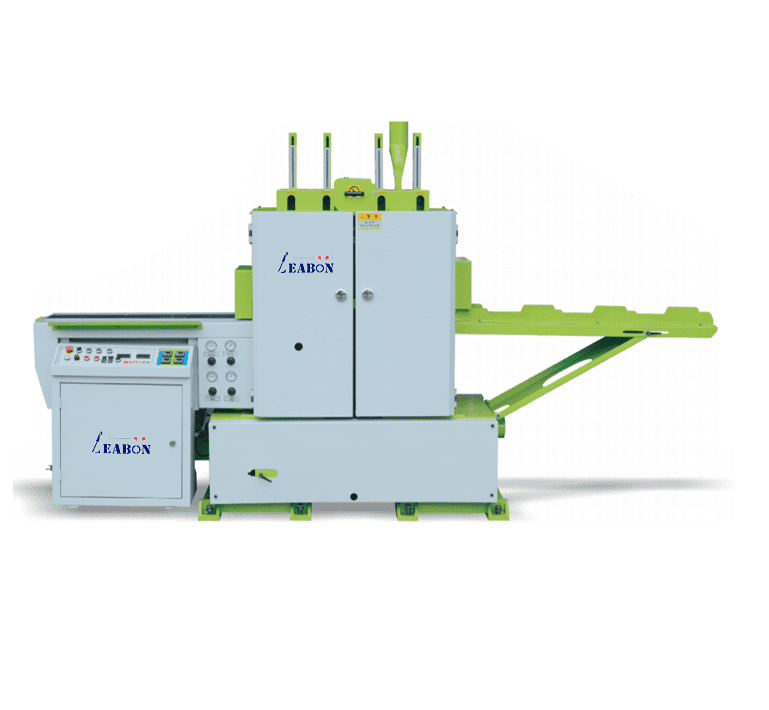

(4) Frame Saw Machine Work Area

After being processed in the CNC Log Carriage and Cutting Machine work area, the wood enters the frame saw work area. Here, the square wood frame saw machine and the round wood/square wood dual-purpose frame saw machine perform further processing according to the type and specifications of the wood. The square wood frame saw machine is mainly used to saw square wood, completing multiple sawings of wood at one time. It uses high-quality imported strip saws, with small sawing paths, less waste, and cost savings.

The round wood/square wood dual-purpose frame saw machine is suitable for large wood, and can efficiently saw both round wood and square wood. This multifunctional frame saw machine not only improves processing efficiency but also reduces the equipment’s footprint.

03 Advantages Of Saw Cutting Equipment Connection

(1) High Precision

Using advanced CNC technology and precision mechanical design, the CNC Log Carriage and Cutting Machine’s ball screw and servo motor ensure accurate feed size, and the hydraulic band saw’s automatic backing pressure system maintains stable saw blade tension, thereby ensuring sawing quality. This high-precision processing method not only improves product quality, but also reduces material waste and production costs.

(2) Automation

The entire process from automatic loading to automatic transmission to frame saw processing has been automated, reducing manual intervention and improving production efficiency and safety. Automated operation also enhances production stability and consistency, ensuring the stability of product quality.

(3) High Efficiency

The optimized mechanical structure and power system improve processing speed and production capacity. The fast feed of CNC Log Carriage and Cutting and the efficient sawing of hydraulic band saw, combined with the multi-function frame saw machine’s multi-strip sawing, further improve production efficiency, reduce costs, and enhance the company’s competitiveness.

(4) Stability

The use of high-strength materials and stable design, the fully enclosed track of CNC Log Carriage and Cutting and the automatic lining pressure system of hydraulic band saw improve the stability and service life of the equipment, reduce maintenance costs, and ensure production continuity.

(5) Environmental protection

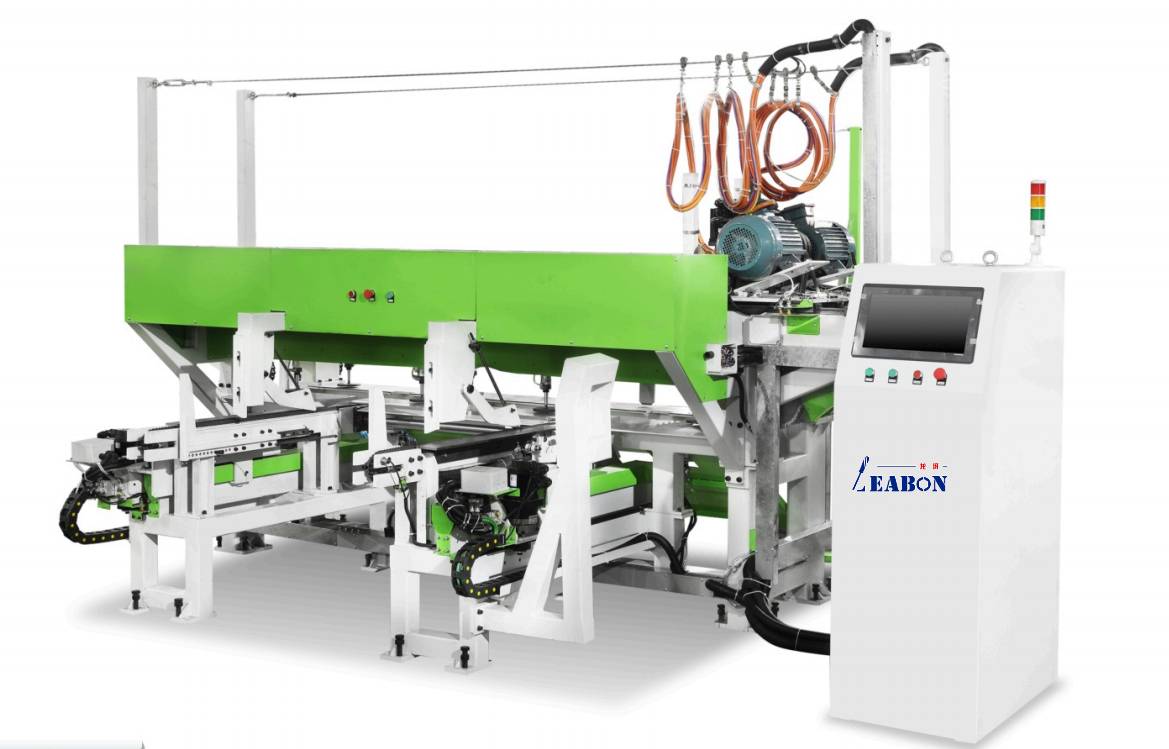

Equipment such as intelligent edge cleaning machines reduce material waste and improve utilization, while automated operation reduces energy consumption. This environmentally friendly processing method not only meets modern environmental protection requirements, but also saves costs for enterprises and improves economic benefits.

04 Conclusion

The CNC Log Carriage and Cutting frame saw production line, with its innovative technology and efficient operation, offers a brand-new solution for log sawing. It not only addresses the low efficiency, high costs, and safety hazards associated with traditional log sawing methods, but also meets the demands of modern processing for automation, intelligence, high efficiency, and low labor costs.
